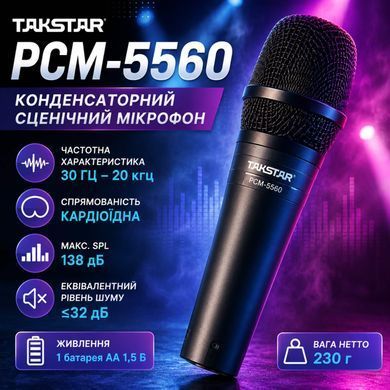

Takstar PCM-5560 On-stage Condenser Microphone

Unique outlook design with multiple optional colors, perfect combination of profession and fashion
High efficiency electro-acoustic conversion technology ensures natural and clear sound reproduction
3-step sensitivity adjustment switch for different applications
High sensitivity and low impedance design perfectly matches the computer integrated sound card or external sound card connection
Built-in filter windscreen effectively eliminate the unwanted noise such as breathing or wind noise
Provided with C2-1 special conversion cable for convenient mobile phone karaoke and better sound performance
Powered by 1pc 1.5V AAA battery, long operating time up to 360 hours

Specification

• Transducer Principle: Back electret condenser

• Polar Pattern: Cardioid

• Frequency Response: 30Hz-20KHz

• -10dB(for home entertainment)

• Sensitivity: -52dB±3dB(0dB=1V/Pa at 1KHz)

• Equivalent Noise Level: ≤32dB(IEC 581-5)

• Max. Input SPL: 138dB(THD≤1% at 1KHz)

• 0dB(for mobile phone karaoke, network karaoke)

• Sensitivity: -42dB±3dB(0dB=1V/Pa at 1KHz)

• Equivalent Noise Level≤22dB(IEC 581-5)

• Max. Input SPL: 128dB(THD≤1% at 1KHz)

• +10dB(for network karaoke):

• Sensitivity: -32dB±3dB(0dB=1V/Pa at 1KHz)

• Equivalent Noise Level≤18dB(IEC 581-5)

• Max. Input SPL: 118dB(THD≤1% at 1KHz)

• Output Impedance: 350Ω±30%

• Load Impedance: ≥1000Ω

• Power Requirement: 1pc 1.5V AA battery

• Net Weight: 230g

Takstar PCM-5560 — Handheld Condenser Microphone for Vocals, Karaoke and Personal Recording

The Takstar PCM-5560 is a wired handheld condenser microphone featuring a cardioid pickup pattern and three selectable sensitivity settings: −10, 0 and +10 dB. Designed for home entertainment, computer karaoke, mobile karaoke, personal recording and musical instruments, it offers a flexible solution for different vocal and audio recording situations.

Its key advantage is the ability to adjust microphone sensitivity according to the sound source and recording conditions. Combined with a wide 30 Hz – 20 kHz frequency response, battery-powered operation and included accessories, the PCM-5560 is suitable for singers, music students, content creators and home recording enthusiasts.

Key Features and Benefits of the Takstar PCM-5560

Cardioid condenser capsule. The microphone primarily captures sound from the front while reducing pickup from other directions. This helps focus on the performer's voice and limit some unwanted background sound.

Three selectable sensitivity settings. The microphone provides different operating modes:

• −10 dB: suitable for louder vocals and home entertainment, with a maximum SPL of 138 dB.
• 0 dB: suitable for regular karaoke and speech, with a maximum SPL of 128 dB.
• +10 dB: increases sensitivity for quieter sound sources, with a maximum SPL of 118 dB.

Wide 30 Hz – 20 kHz frequency response. The microphone covers a broad audio spectrum, making it suitable for singing, spoken-word recording and selected musical instruments.

Maximum SPL up to 138 dB. In the −10 dB setting, the microphone can handle louder sound sources within the manufacturer's specified operating limits.

1.5V battery-powered operation. The microphone has its own power supply and does not require an external phantom power source for normal operation. The manufacturer's instruction manual specifies one AAA battery.

Integrated windscreen. The built-in protective element helps reduce breath noise, airflow and plosive sounds during vocal recording and speech.

Included desktop tripod and microphone holder. The ST-105 tripod and MH-6 microphone clamp support convenient desktop positioning for karaoke, voice recording and vocal practice.

Multiple connection accessories. The included C3-3 and C2-1 cables and 3.5 mm to 6.3 mm adapter provide connection options for compatible audio equipment.

Practical Applications of the Takstar PCM-5560

Home karaoke. The PCM-5560 is designed for singing with backing tracks and home entertainment systems. Users can select a sensitivity setting according to vocal loudness and microphone placement.

Computer karaoke. The microphone can be used with compatible computer audio inputs, sound cards and karaoke software. Input compatibility should be checked before connection.

Mobile karaoke. The manufacturer includes a C2-1 connection cable for supported mobile karaoke applications. Compatibility with modern smartphones depends on the device connector, audio adapter and software.

Vocal lessons and practice. Music students and teachers can use the microphone to record exercises, review performances and prepare educational audio materials.

Personal voice recording. The PCM-5560 is suitable for vocal demos, narration, voice commentary and personal audio projects when used with compatible recording equipment.

Musical instrument recording. The manufacturer lists instrument recording among the intended applications. The selectable sensitivity settings help adapt the microphone to different sound levels.

Online content and karaoke streaming. The microphone can be used for music broadcasts, karaoke streams and spoken-word content through a compatible audio connection.

Small creative performances. The handheld construction supports use in intimate music events. Appropriate sound system setup and microphone placement are important for feedback control.

Music schools and creative facilities. The microphone can support vocal training, student recordings and educational music projects.

Connection and Power Requirements

The Takstar PCM-5560 operates using one 1.5V battery. The manufacturer's instruction manual specifies an AAA battery. Users should verify the battery compartment marking on their particular unit.

The PCM-5560 does not include a built-in USB audio interface. Connecting it to a computer, smartphone or television requires a compatible microphone input, suitable cable or appropriate audio interface.

For longer battery life, the microphone should be switched off when not in use.

Takstar PCM-5560 Technical Specifications

• Microphone type: wired handheld condenser microphone.
• Transducer principle: back-electret condenser.
• Polar pattern: cardioid.
• Frequency response: 30 Hz – 20 kHz.
• Sensitivity settings: −10 / 0 / +10 dB.
• Sensitivity at −10 dB: −52 dB ±3 dB.
• Sensitivity at 0 dB: −42 dB ±3 dB.
• Sensitivity at +10 dB: −32 dB ±3 dB.
• Maximum SPL at −10 dB: 138 dB.
• Maximum SPL at 0 dB: 128 dB.
• Maximum SPL at +10 dB: 118 dB.
• Output impedance: 350 ohms ±30%.
• Recommended load impedance: at least 1000 ohms.
• Power requirement: one 1.5V AAA battery according to the instruction manual.

Takstar PCM-5560 Package Contents

The manufacturer's standard package includes one PCM-5560 microphone, one ST-105 desktop tripod, one MH-6 microphone clamp, one C3-3 connecting cable, one C2-1 connecting cable, one 3.5 mm to 6.3 mm adapter, one AAA battery and one user manual.

Buy Takstar PCM-5560 in Ukraine — Direct Importer ClubTech

ClubTech is an official direct importer of Takstar products in Ukraine. We supply genuine professional audio equipment for singers, musicians, music schools, home studios, creative facilities, karaoke venues and businesses involved in professional audio.

The Takstar PCM-5560 is available through ClubTech for retail and wholesale customers. We welcome inquiries from music equipment stores, educational organizations, creative businesses and professional audio suppliers.

We invite new dealers, music equipment retailers, entrepreneurs, professional audio companies, system integrators and audio installation contractors to cooperate with ClubTech.

Special advantageous wholesale and partnership terms can be discussed individually, taking into account purchasing volumes, business requirements and project needs.

ClubTech welcomes new customers and long-term partnerships throughout Ukraine. We are interested in expanding the Takstar dealer network and supporting businesses involved in professional audio equipment sales and installation.

FAQ — Frequently Asked Questions About the Takstar PCM-5560

1. What are the three sensitivity settings used for?

The −10, 0 and +10 dB settings allow users to adapt microphone sensitivity to different sound levels. The −10 dB setting provides greater maximum SPL capability, while +10 dB increases sensitivity for quieter sources.

2. Is the Takstar PCM-5560 suitable for home karaoke?

Yes. Home, computer and online karaoke are among the manufacturer's intended applications. The cardioid pickup pattern and selectable sensitivity settings make the microphone useful for different karaoke setups.

3. Can I connect the PCM-5560 to a smartphone?

The manufacturer includes a C2-1 cable for supported mobile karaoke applications. Compatibility with modern smartphones depends on the device connector, audio adapter and software configuration.

4. What power supply does the Takstar PCM-5560 require?

The microphone uses one 1.5V AAA battery according to the manufacturer's instruction manual. An external phantom power supply is not required for normal operation.

5. Where can I buy the Takstar PCM-5560 wholesale in Ukraine or become a dealer?

ClubTech is a direct importer of Takstar products in Ukraine and offers retail and wholesale sales. We welcome new dealers, music equipment stores, entrepreneurs, professional audio suppliers, system integrators and audio installation companies. Special partnership terms can be discussed individually.
