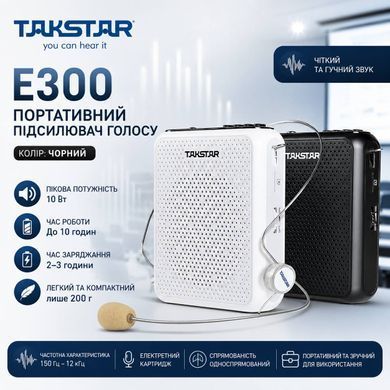

TAKSTAR E300 Portable Wired Amplifier

TAKSTAR E300 Portable Wired Amplifier

• Portable wired amplifier suitable for teaching, tour guide, promotion, etc.

• Wired head-worn microphone of compact and lightweight design for long-time wearing

• Rare earth material speaker, light weight, high-quality sound, high volume

• Wireless playing function to play audio files in a cell phone, PC, PAD, etc.

• Supporting TF card, music playing function to play audio files in MP3 or WAV format

• Recording function to record and save audio files in WAV format

• FM radio function to search and save channels up to 50

• Built-in high capacity Li-ion battery, operation time of more than 10h

• 10W peak power, higher volume, and wide coverage to easily meet the needs of indoor and outdoor sound reinforcement

• Specification

Amplifier Specification

• Frequency Response: 150Hz-12kHz

• Peak Power: 10W

• Speaker Impedance: 4Ω

• THD: THD≤1% 1KHz ＠ 4R,4W

• Operating Voltage: 3.45V-4.2V

• Battery Capacity: 3.7V/2000mAh

• Charging: DC 5V/800mA

• Charging Time: approx. 2~3h

• Operation Time: approx. 10h

• Net Weight: approx. 200g

• Dimension: 113*84*44mm (L*W*H)

Cartridge Specification

• Cartridge: back electret cartridge

• Polar Pattern: unidirectional

• Frequency Response: 100Hz-12.5KHz

• Sensitivity: -42~-48dB (0dB=1V/Pa，at 1KHz)

Note: The data is tested by Takstar Laboratory and Takstar has the final interpretation right!
